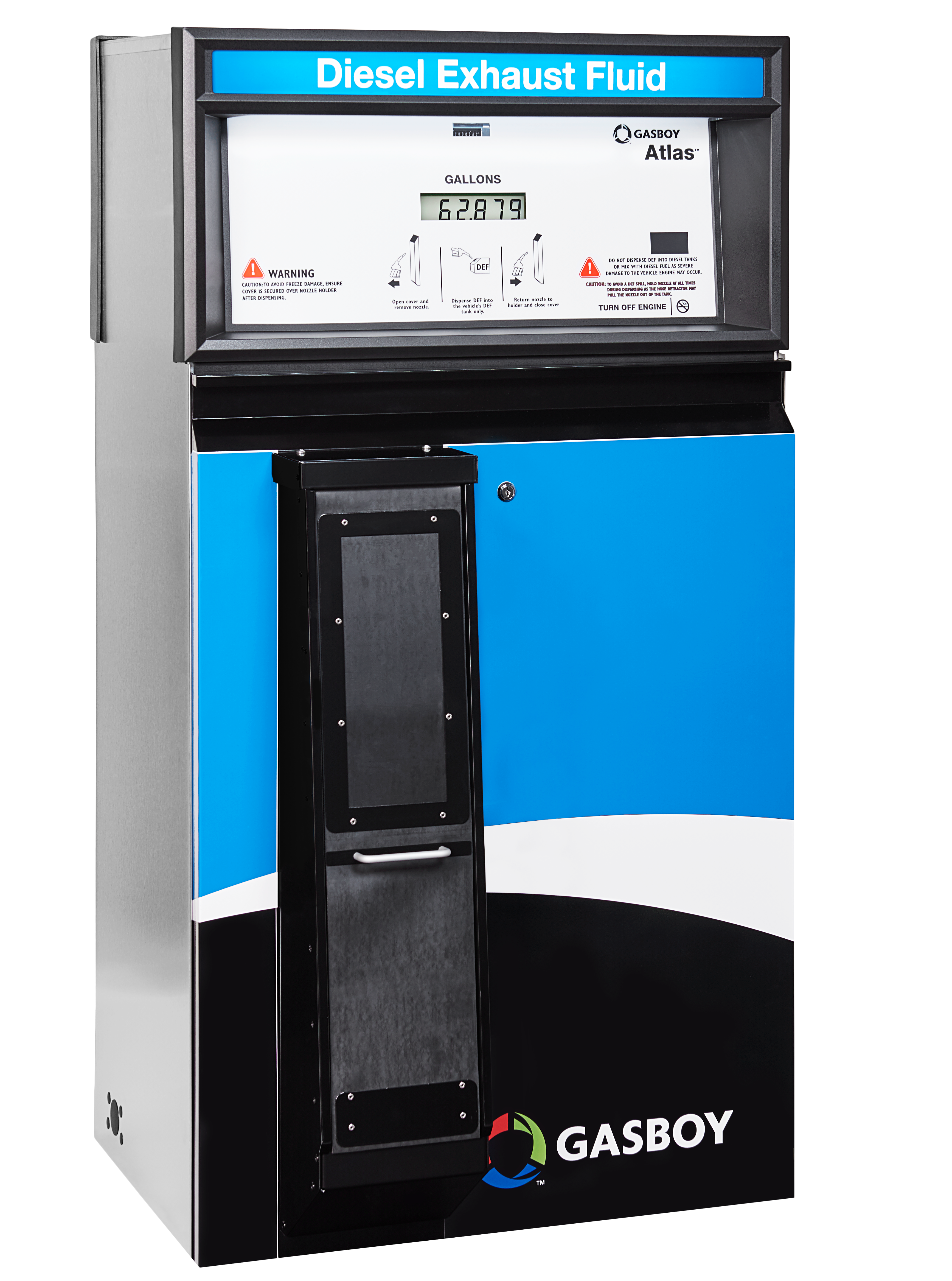

Atlas Electronic DEF - 9862KX


Gasboy Atlas DEF Series: Designed for your DEF needs

Integrate Diesel Exhaust Fluid (DEF) into your existing fleet management system with the Gasboy Atlas (DEF) dispenser available in heated or unheated cabinet models. Our Atlas® DEF dispenser is designed with the user interface that’s already familiar to your drivers. And it uses the same system interfaces as our standard Atlas dispenser, so it works seamlessly with your existing Gasboy® fleet management system and applications.

The Atlas DEF dispenser comes in two configurations: a Cold Weather Model and a Warm Weather Model.

The Cold Weather model has a thermostatically controlled heated hydraulic cabinet with internal hose storage and an enclosed heated nozzle hang-up designed to prevent DEF freezing and crystallization. The Cold Weather model is rated for installations down to -30ºC. The Warm Weather model is intended for warm ambient temperature locations with an unheated hydraulic cabinet using conventional nozzle boot and hose hanger. The Warm Weather model is rated for ambient conditions down to +12ºF.



Weights & Measures approved Coriolis mass flow meter with no moving parts

Compatible with existing Gasboy fleet management infrastructure

Familiar to your drivers

Designed specifically for the unique characteristics of DEF

Models Available
Model Number Description Type Hoses Products Register
9862KX-Z DEF - Cold Weather Dispenser 1 1 Elec
9862KX-WW DEF - Warm Weather Dispenser 1 1 Elec
9862KX-ZWW DEF - Warm Weather Dispenser 1 1 Elec


Regulatory Approvals
  • MET Safety Approval
  • NIST (W&M) Approval
Product Features
  • Coriolis Mass Flow Meter - no moving parts
  • All models come with a field wiring junction box for easy installation
  • Atlas Electronics with electronic calibration
Durability Features
  • Rugged Welded G90 Galvanized steel frame
  • Structural foam bezel with clear polycarbonate window and backscreen polycarbonate dialface
  • Replaceable sheathing - painted or optional 304 embossed stainless steel
  • Large 1” Backlighted LCD volume display - capacitive backup
Component Options
  • Gasboy RS485 Interface or Pulse Output for 3rd party controllers
  • LED Lighted Brands / Dialface
  • External high hose retractor (warm weather only)
  • Non-resettable Electromechanical Totalizer
