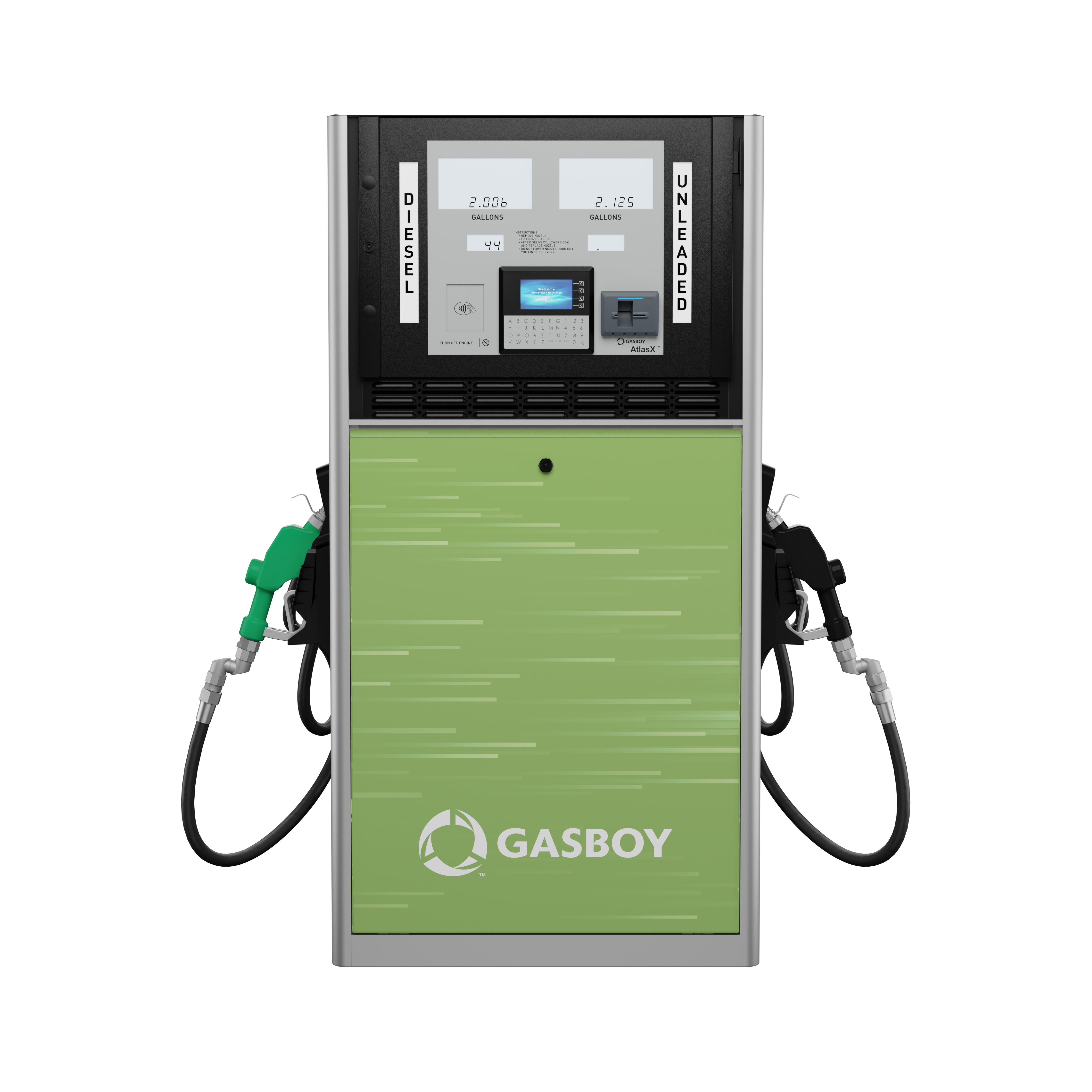

AtlasX PRIME Fuel Management System

Commercial and fleet fueling reimagined

The AtlasX PRIME is a fully integrated fuel controller and dispenser combined into one unit. The latest Gasboy innovation incorporates the Gasboy authorization terminal into the AtlasX electronic dispenser platform. It features a large, user-friendly 40-key full alphanumeric keypad and a 4.3" high-brightness LCD color screen, enabling complete fleet management directly from the pump. The integrated unit includes a MiFare contactless reader and an insert magnetic card reader, with an optional HID reader for multiple authorization methods. The AtlasX PRIME is also fully integrated with the Gasboy FuelPoint® PLUS automated fueling technology. It can function as a stand-alone or remote terminal.

Benefits of AtlasX PRIME

Driver Friendly User Interface

The AtlasX PRIME allows for the most common authentication methods for both operator and vehicle.  Built-in authorization methods include MiFare contactless tag reader, card reader for proprietary cards, and a full alphanumeric keypad.  HID readers are available as an option.

Learn More

Integrated Fuel Management

Gasboy AtlasX PRIME merges the latest fueling control technology with trusted Gasboy AtlasX fuel dispensers. Each fueling position has its own integrated user interface for authorizing transactions and collecting driver and vehicle information.

Learn More

Improved Fueling Experience

The AtlasX PRIME point-of-use fuel authorization terminal provides a faster, safer, and more intuitive fueling experience at commercial fleet fueling sites. Separate fuel control pedestals are not needed at AtlasX PRIME locations which simplifies installation.

Learn More

Authorization At Your Fingertips

Many fleet fueling sites have separate dispensers and fuel management pedestals.  For the driver, this can be confusing and inefficient.  AtlasX PRIME's integrated fuel controls provide a quick and efficient fueling experience.  The driver simply authorizes the transaction at the pump and begins fueling.   When driver productivity is important to your organization, chose AtlasX PRIME for your fueling operation.

Reduce Installation Costs

Besides the driver experience, pedestal-controlled forecourts can produce challenges with installation. Laying cable/wire to connect dispensers with pedestals are costly and time consuming.  AtlasX PRIME installations with integrated fuel controls and dispensers save installers $1,500 to $3,000 on average per pedestal.

Understanding what dispenser communication goes with what pump interface on the fuel controller is not always apparent.  With AtlasX PRIME's integrated fuel controls, installers avoid mistakes with pump interfaces that can create additional installation expense.

Condensed Footprint

Since there is no additional fuel management pedestal to install, AtlasX PRIME dispensers have a smaller footprint at your fueling facility.

How will AtlasX PRIME integrate into your business?

View FAQs

AtlasX PRIME Product Specifications

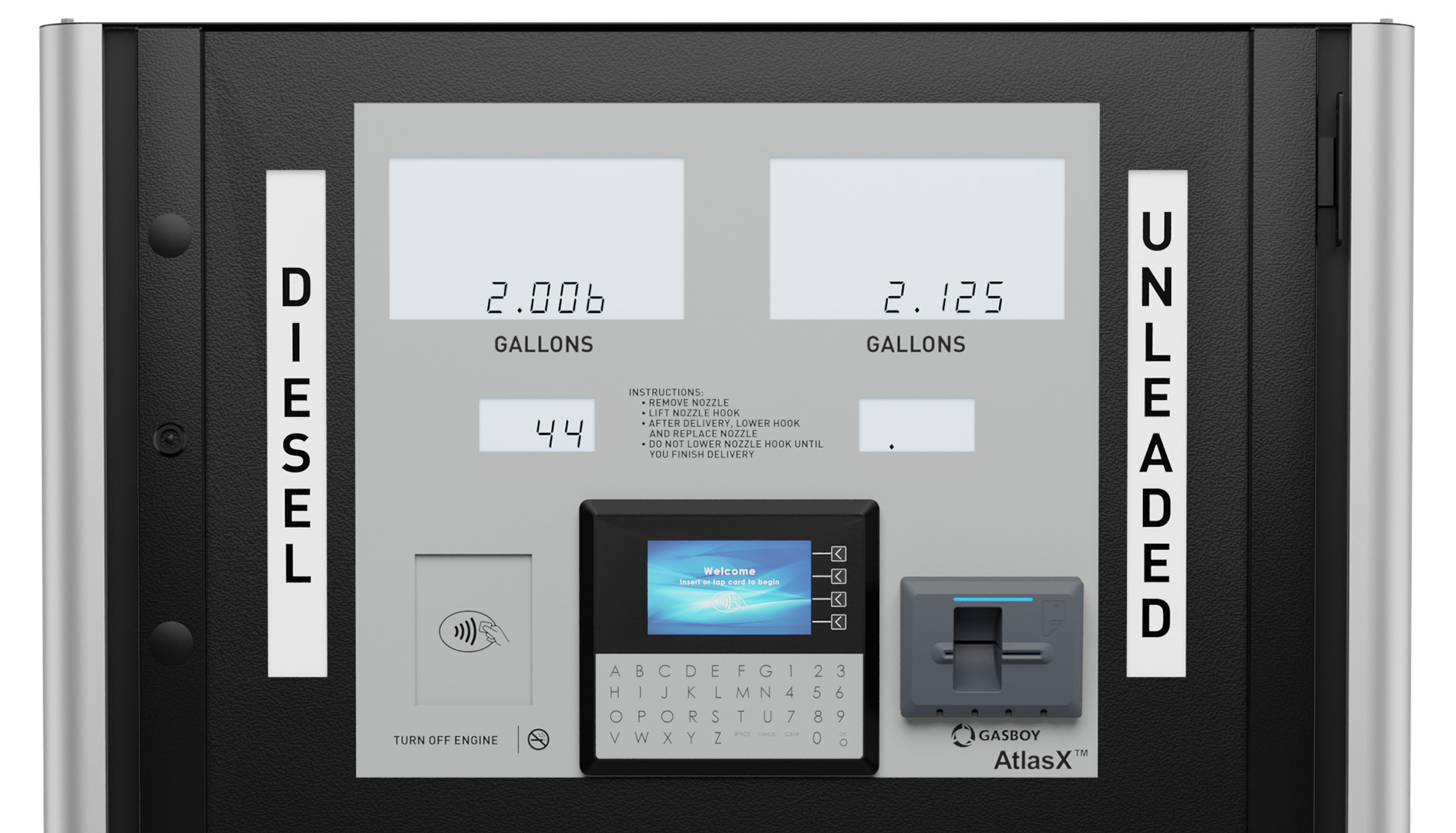

Fuel Authorization Terminal
  • 4.3" multimedia color display
  • Full alphanumeric 40 key keyboard
  • Addressable soft keys
  • Contactless MiFare cards and 125K tag reader
  • Horizontal insert magnetic card reader for fuel and fleet cards
  • Built-In Wireless Gateway for use with Gasboy FuelPoint® PLUS wireless vehicle ID system
  • Two-stage authorization option for validation of driver and vehicle with any combination RFID tag, HID tag, card reader, FuelPoint® PLUS, and keypad
In-Dispenser Controller
  • Intel Atom E3800 series processor
  • 2GB/4GB DDR3L system memory
  • Linux based operating system
HID Reader
  • Optional HID multiCLASS SE PR40 Reader
    • 125kHz contactless cards supported
    • HID Prox®, Indala® Prox, Dorado® Prox, and EM Prox legacy contactless credentials
    • 13.56 MHz contactless smart cards supported iCLASS Seos®, iCLASS SE, iCLASS®, MiFare® Classic, and MiFare DESFire®EV1
Software
  • Real-time monitoring of refueling and tank levels, delivery and inventory reconciliation
  • Local account management supporting up to 100,000 off-line transactions
  • 100,000 devices (vehicles & drivers)
  • Vehicle controls including fuel type restrictions, maximum daily transactions and volume, mileage and odometer restrictions.
  • Employee controls including maximum daily transactions and volume
Certifications
  • UL
  • cUL
  • FCC
Warranty
  • Parts and Labor coverage for 12 months from installation
