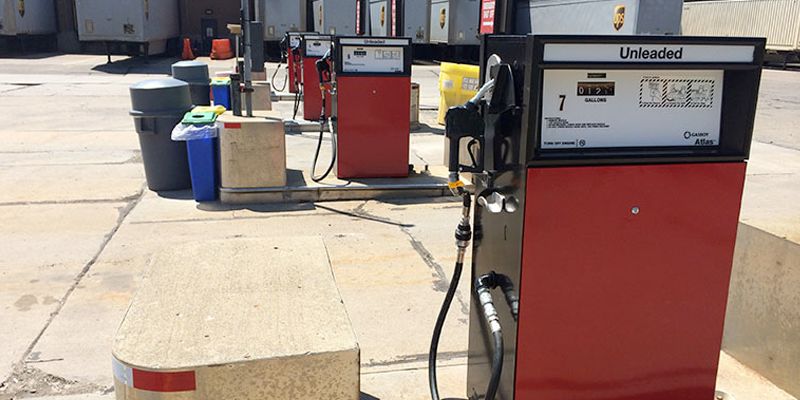

The Rugged, Reliable Choice
The Atlas® 9100K Series fleet fuel dispenser uses a traditional mechanical register and delivers dependable performance in nearly any fleet fuel management application. The high-speed mechanical commercial units are available in pump and dispenser models. Add the Pulser option to communicate with most fuel controllers. With the satellite piping option, you can pair the 9153KX Atlas Fuel Dispenser with the Atlas 9216K Satellite dispenser to create a fueling system that can meet your needs precisely. Contact your Gasboy distributor and come see how you can improve your accuracy and performance with Gasboy.
Download Brochure
Atlas Mechanical Fuel Dispenser Features
Easy Use
Traditional refueling platform without electronics suitable for most high-flow fleet fueling applications
Durable
Commercial-grade construction and superior corrosion resistance equates to longer life on fleet fuel islands
Fast
Rated at 22 gallons per minute (GPM) with a LC meter, dispensing fuel has never been faster or more accurate.
Expandable
Increase fuel efficiencies by integrating your cloud-connected software with you dispensers
Purpose Built For Fleet Environments
The Atlas Mechanical dispenser is built for harsh fleet environments. It has a rugged welded G90 galvanized steel frame, structural foam bezel with clear polycarbonate window and back screen polycarbonate dial face. The replaceable sheathing—painted or optional 304 embossed stainless steel—ensure that you can keep your fuel island looking nice for years to come.
Atlas Mechanical Fuel Dispenser Configurations
|
Model Number |
Description |
Type |
Hoses |
Products |
Register |
Pump/Motor |
Flow Rating |
|
9153K |
Hi-flow Single Pump |
Pump |
1 |
1 |
Mech |
1 |
22 gpm |
|
9152KTW1 |
Std-flow Twin 1 Pump |
Pump |
2 |
1 |
Mech |
1 |
15 gpm |
|
9153KTW1M |
Hi-flow Twin 1 Pump |
Pump |
2 |
1 |
Mech |
2 |
22 gpm |
|
9153KTW2 |
Hi-flow Twin 2 Pump |
Pump |
2 |
2 |
Mech |
2 |
22 gpm |
|
9153KX |
Hi-flow Single Dispenser |
Dispenser |
1 |
1 |
Mech |
N/A |
22 gpm |
|
9153KXTW1 |
Hi-flow Twin 1 Dispenser |
Dispenser |
2 |
1 |
Mech |
N/A |
22 gpm |
|
9153KXTW2 |
Hi-flow Twin 2 Dispenser |
Dispenser |
2 |
2 |
Mech |
N/A |
22 gpm |
Related Fleet Products
Atlas 9800 Series Electronic Dispenser
The 9800K Series Basic High Flow Atlas has electronic displays . Available in a complete range of pump or dispenser style models . Versatile for most high-flow fleet fueling applications .
Learn More

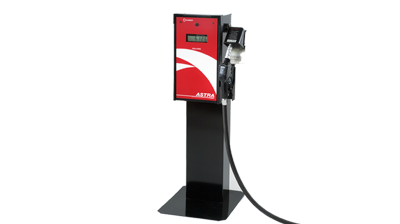

Atlas AST Remote Dispenser
The Atlas 9823K ASTRA is a split-remote, AST-mounted pump with an electronic display and a nozzle hang-up at grade. It has easy access and viewing at just the right user height.
Learn More

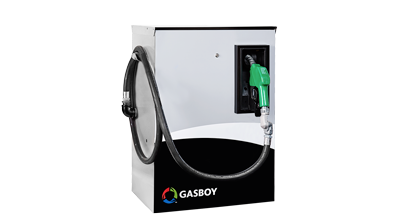

Atlas Satellite Dispenser
The 9216K Series general purpose satellite dispenser for use with Atlas or other master dispensers has front-load, lane-oriented nozzle boots . The 9216K is convenient for toll-gate island layout with fuel from both sides of the fueling lane, with a singl
Learn More

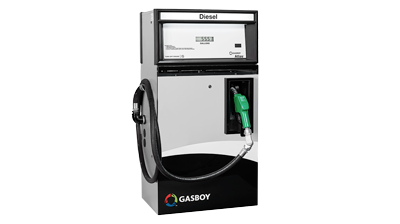

Atlas Ultra-Hi Flow Dispensers
